OVERVIEW

Installation of a 20 tonnes-per-hour boiler and turbine generator, with the water treatment system, steam and condensate lines, chimneys, structural platforms and pressure reducing stations, all tested by X-ray and NDT.

Discuss a similar project

SCOPE OF WORK

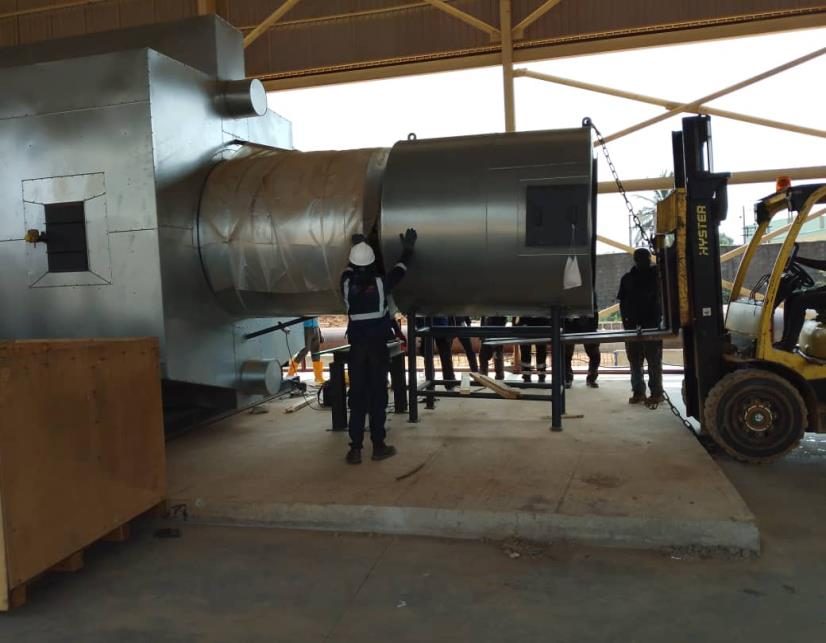

Installation of 20 TPH boiler unit
Installation of turbine unit

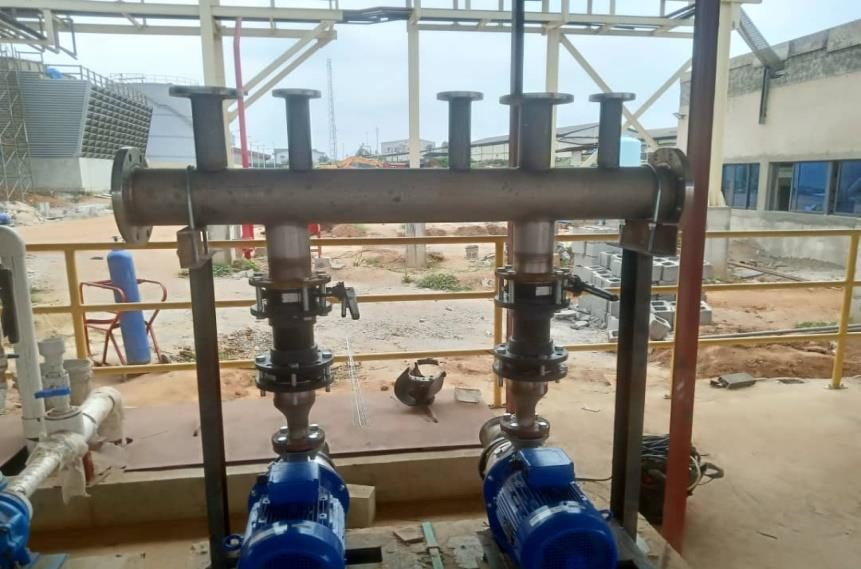

Installation of water treatment system and pumps
Installation of steam trap stations, new boiler to 30KLPD section
Installation of condensate return line, 30KLPD section to boiler house

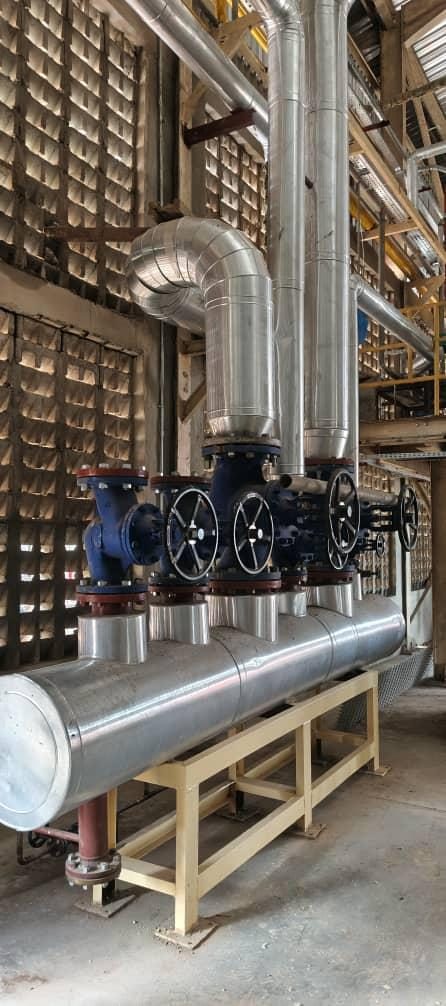

Installation of new steam header (DIN PN25 or ASME Class 300)

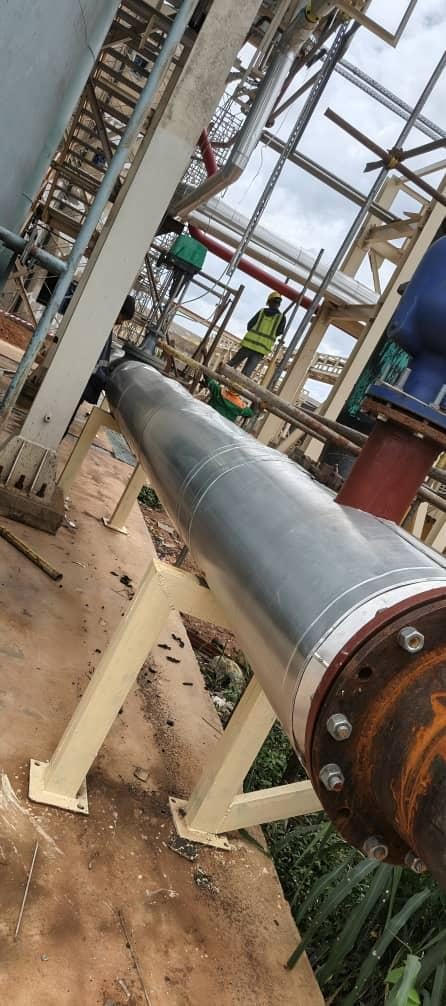

Fabrication, installation and painting of piping

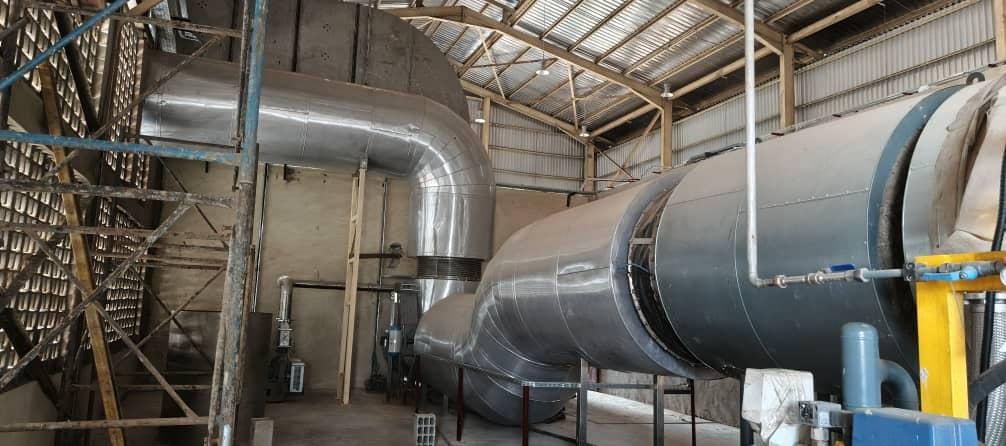

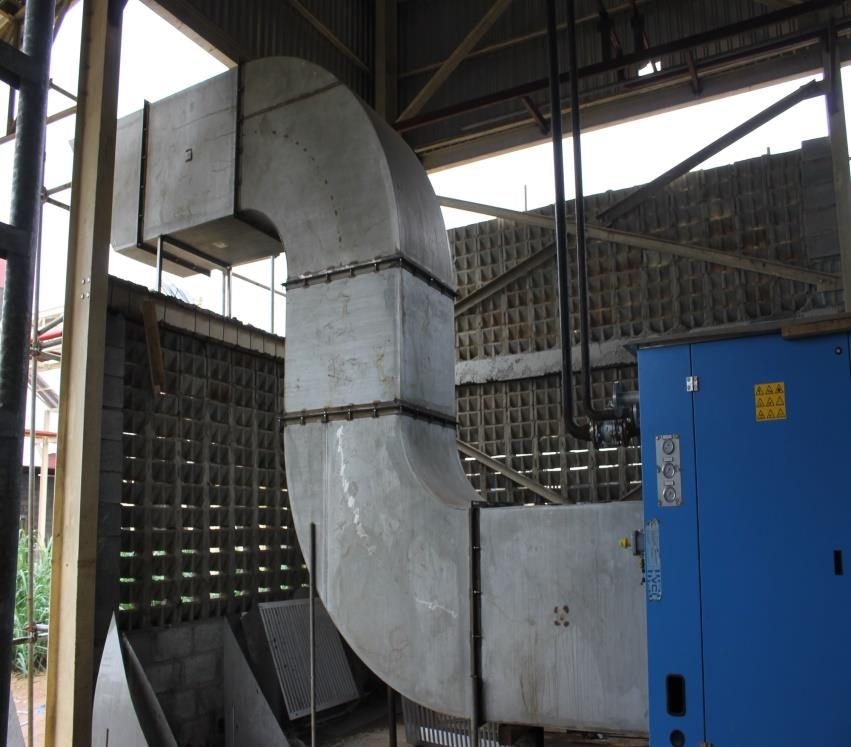

Fabrication and installation of hot air and fresh air ducts

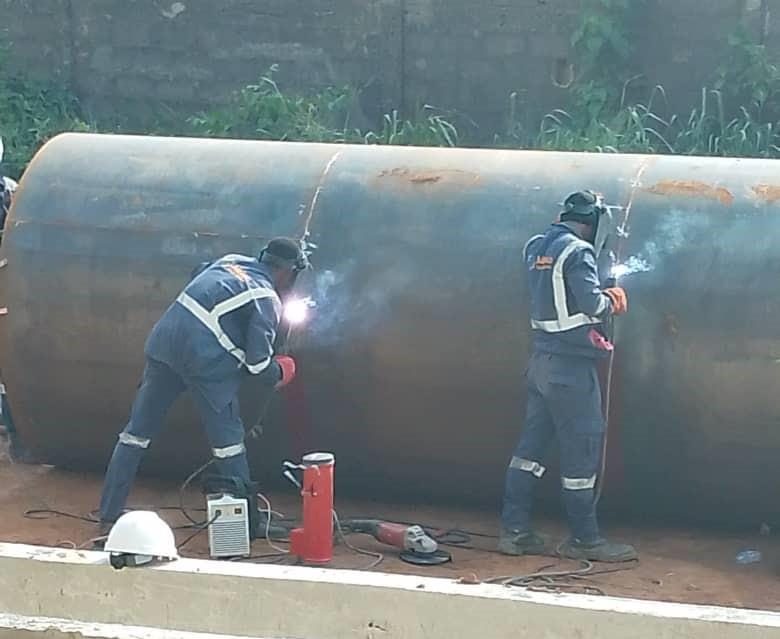

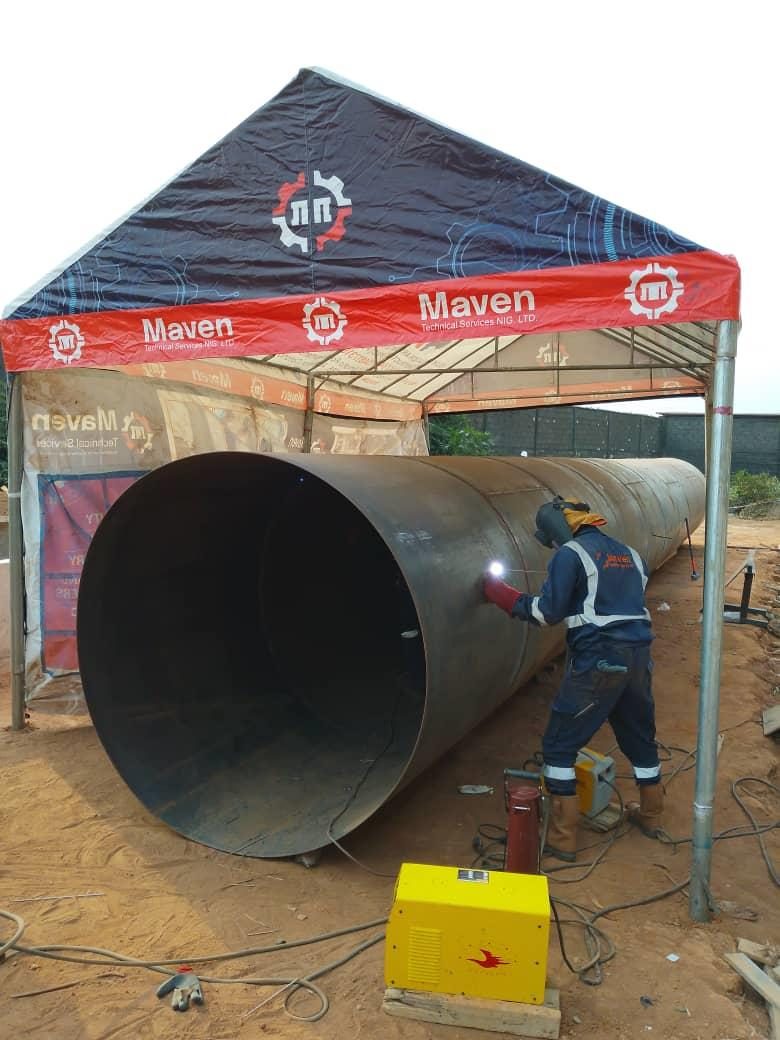

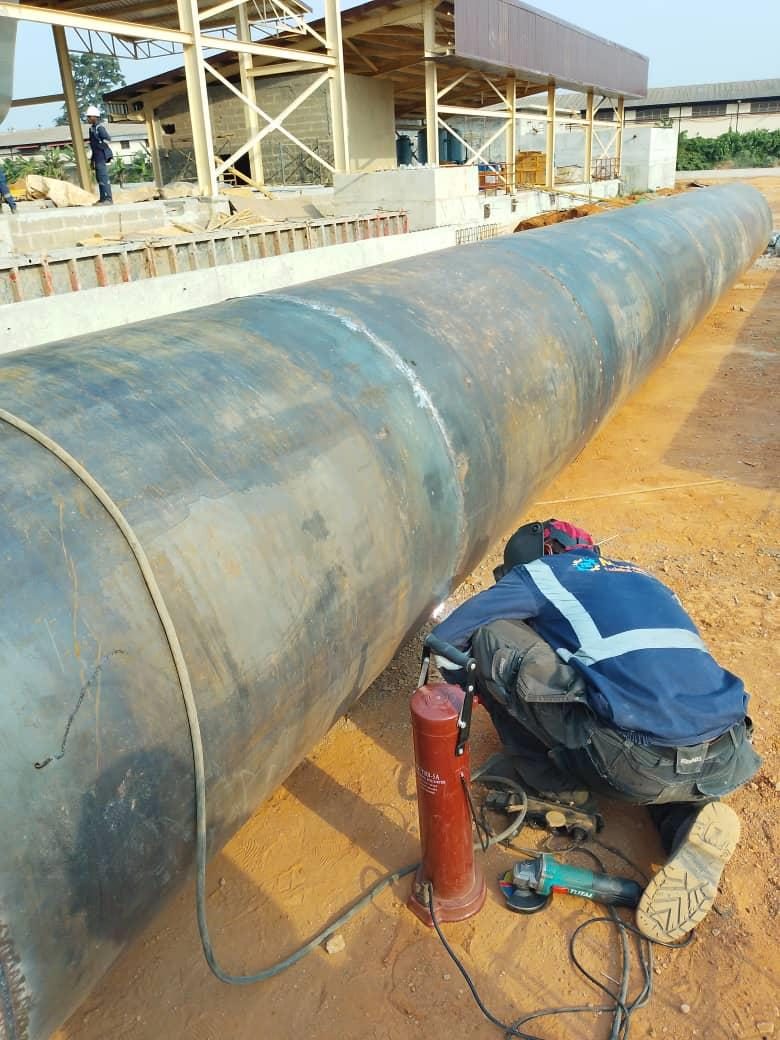

Fabrication, installation and painting of main boiler chimney and bypass chimney
Fabrication, installation and painting of structural piping supports
Fabrication, installation and painting of structural platforms
X-ray testing of pipelines
Non-destructive testing (NDT) of pipelines
Supply of boiler water treatment plant piping
Supply of SS 304 piping, fittings and structural materials for boiler and TG house
Supply of MS piping, fittings and structural materials for boiler and TG house

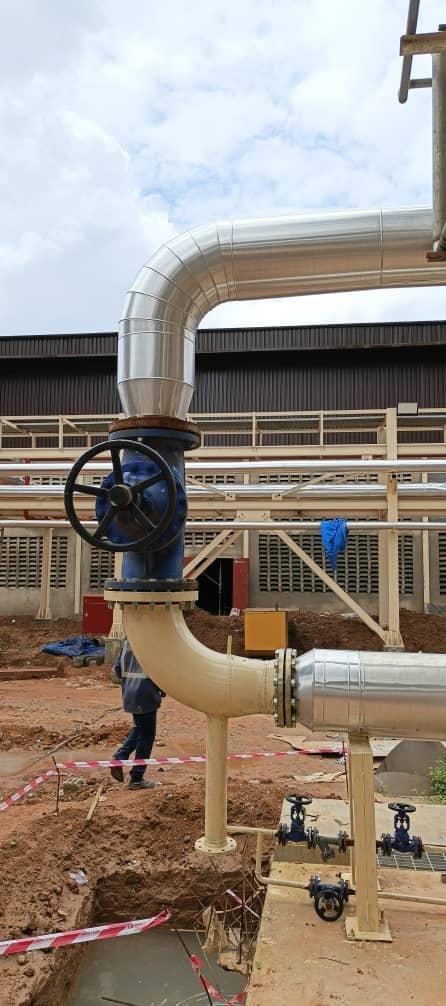

Supply and installation of steam line from new boiler house to existing 30KLPD section, including steam trap stations
Supply and installation of condensate return line from existing 30KLPD section to new boiler house
Installation of 8 bar to 3.5 bar pressure reducing station, with isolation valves
Installation of 8 bar to 1.5 bar pressure reducing station, with isolation valves
